Metabo KFM 15-10 F Metal Bevelling tool (601752500)
- Product number: 601752500
Powerful Metal Bevelling tool for Precise Weld Seam Preparation The Metabo KFM 15-10 F... more
Product information "Metabo KFM 15-10 F Metal Bevelling tool (601752500)"
Powerful Metal Bevelling tool for Precise Weld Seam Preparation

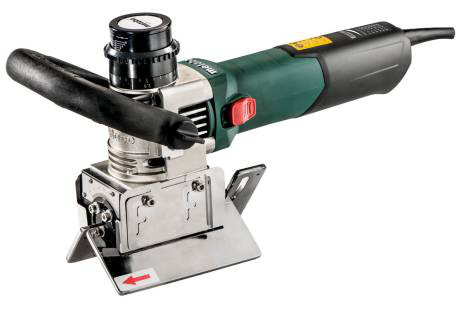

The Metabo KFM 15-10 F Metal Edge Milling Machine (601752500) features a powerful 1500 W rated input power and allows for chamfer heights of up to 10 mm at 45°. Ideal for precise deburring and chamfering of metal. Includes the metaBOX 280 L for secure transport and storage.
Features of the Metabo KFM 15-10 F Metal Bevelling tool
- Metal Bevelling tool for chamfer heights up to 10 mm for weld seam preparation

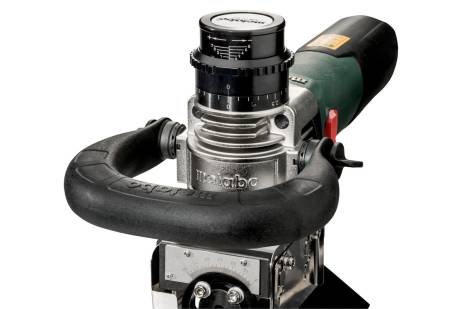

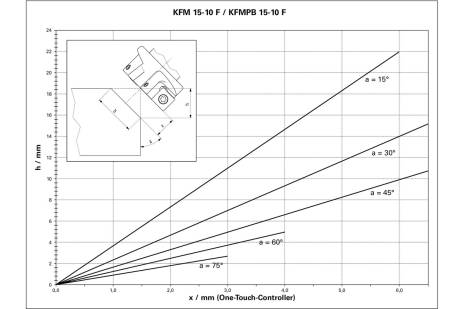

- One-touch controller: patented, tool-free milling depth adjustment in 0.1 mm increments; locking points for quick settings and to prevent unintended depth changes during work
- Precise adjustment of the chamfer angle directly via the guide plates

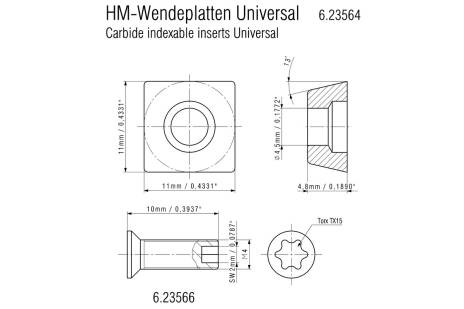

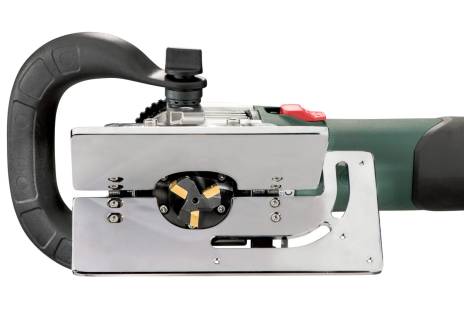

- Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°

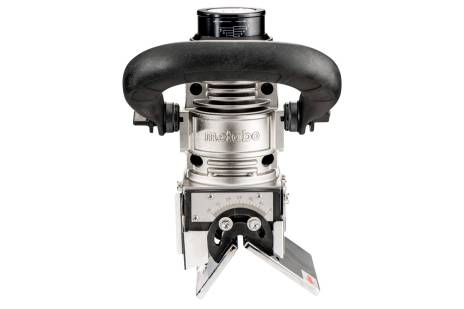

- Controlled operation thanks to large guide plates
- Stop roller for guiding along pipes for easy weld seam preparation
- Tool-free adjustable bow-type handle for safe and uniform guidance
- Metabo Marathon motor with patented dust protection for long service life
- Vario-Constamatic (VC) full-wave electronics with a dial: enables working at material-appropriate speeds that remain almost constant under load
- Electronic overload protection, soft start, and restart protection
- User protection through side plates that deflect chips
- Comes with metaBOX, the smart solution for transport and storage
Technical Data of the Metabo KFM 15-10 F Metal Bevelling tool
Performance Characteristics:
- No-load speed: 7,800 - 12,200 rpm
- Rated input power: 1,500 W
- Output power: 810 W
- Type of edges: Chamfer
- Chamfer angle: 0 - 90°
- Max. chamfer width (45°): 14 mm
- Max. chamfer height (45°): 10 mm
- Milling depth adjustment increments: 0.1 mm
- Smallest outer diameter for rounding: 75 mm
- Weight (without power cable): 4.9 kg
- Cable length: 4 m
Vibration:
- Vibration: 2.5 m/s²
- Measurement uncertainty K: 1.5 m/s²
Noise Emission:
- Sound pressure level: 92 dB(A)
- Sound power level (LwA): 103 dB(A)
- Measurement uncertainty K: 3 dB(A)
Scope of Delivery:

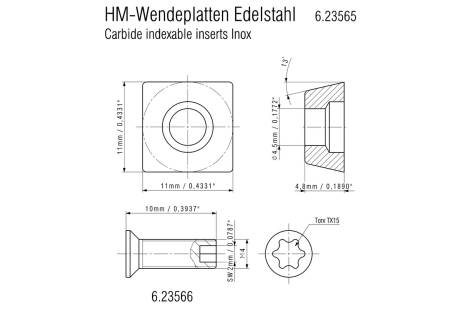

- 3 universal carbide indexable inserts
- Stop roller

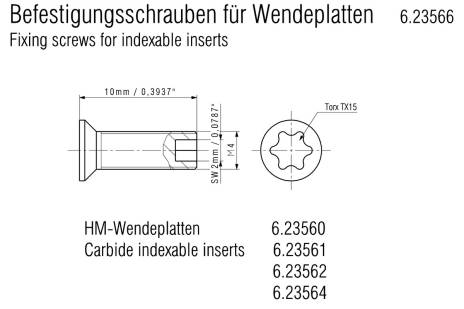

- Torx screwdriver for Torx screws 15
- SW 4 T-handle screwdriver
- SW 10 open-end wrench
- Bow-type handle
- metaBOX 280 L
