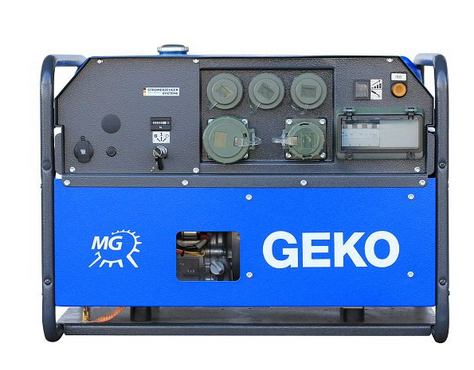

Geko 7401 ED-AA/HHBA PS Power generator, petrol, 6.5kVA

Professional Geko 7401 ED-AA/HHBA PS power generator, petrol, 6.5kVA

The professional GEKO power generators are specially designed for tough professional use. Due to their design, they are also suitable for daily use on construction sites. With a power range of 2.5 to 13.4 kVA for the petrol generators and 5 to 15 kVA for the diesel generators, these generators can be used very flexibly and can also withstand longer working hours without any problems thanks to the large tanks.

The professional power generators also impress with their reliability and the high quality of workmanship that GEKO is known for, as well as the almost unlimited range of optional accessories.

Equipment:

• Silent version with large air filter and large silencer
• Partially encapsulated with insulated sheet steel
• Particularly quiet
• Control box operation opposite the exhaust
• Start-up boost can be switched off
• Protected battery installation in the switch box
• Automatic low oil cut-off
• Fuel gauge
• 3x shockproof socket IP67
• 1x CEE 1-phase 16A IP67
• 1x CEE 3-phase 16A IP67
• 1x vehicle 12V DC connection

Possible applications

Medium power tools, hammer drills, angle grinders, lawn mowers, light supply, etc. Compact design. Operating time of up to 15 hours with one tank of fuel. Automatic low oil cut-off. Starting current booster can be switched off.

Technical data:

• Power: 6480 VA / 5150 VA
• Voltage: 230 V / 400 V
• Max. total current: 1~ 24A
• Current 1~ (schuko): 16A
• Current 1~ (CEE): 16A
• Current 3~: 10.4A
• Frequency: 50 Hz
• Protection class: Generator IP 54
• Engine: Type Honda GX390 RT2
• Number of cylinders: 1
• Speed: 3000 rpm
• Fuel type: Petrol
• Engine oil capacity: 1.1 litres
• Engine power: 6.4 kW
• Engine/generator cooling: Air/air
• Tank capacity: 19 litres
• Operating time: Full load/ half load 6/ 8.25 h
• Weight: 119 kg
• Dimensions: L x W x H 736 x 580 x 530 mm
• Sound power level: LWA 96 dB(A)
• Sound pressure level (10m): 68 dB(A)
