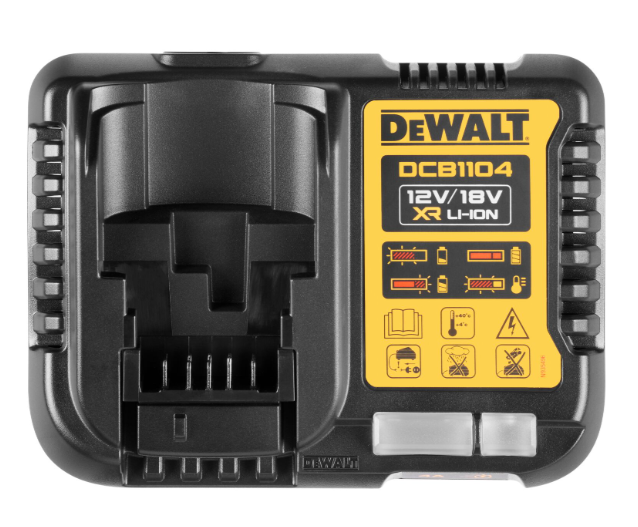

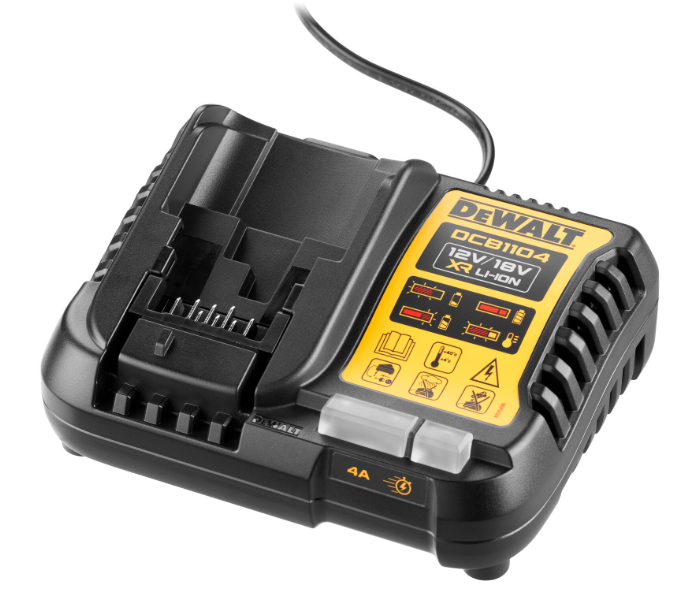

DeWALT DCB1104 System Fast Charger (10.8-18 Volt)

DeWALT DCB1104 Fast Charger (10.8-18V) – Compact & Efficient

The DeWALT DCB1104 system fast charger efficiently charges all DeWALT XR slide-on batteries (10.8-18V, 1.3-5.0 Ah). Featuring a 2-stage charging process for maximum battery lifespan, LED indicator, and wall-mounting option – ideal for professional use.

Additional Features:

• Wall-mountable – flexible use
• Compact dimensions – ideal for tight workspaces
• Optimal handling – perfect for assembly tasks

Technical Specifications:

• Compatible battery types: 10.8V / 14.4V / 18V / 54V (XR slide-on batteries & XR Flexvolt batteries only)
• Battery technology: Li-Ion
• Charging current: 4.0 A

• Charging times:

  • 1.3 Ah: approx. 20 min

  • 1.5 Ah: approx. 25 min

  • 2.0 Ah: approx. 30 min

  • 4.0 Ah: approx. 60 min

  • 5.0 Ah: approx. 70 min

  • FV 108 Wh (6 Ah): approx. 90 min

  • FV 162 Wh (9 Ah): approx. 135 min

  • FV 216 Wh (12 Ah): approx. 180 min

• Dimensions (L x W x H): 14.5 x 11.5 x 7 cm
• Weight: 0.5 kg

Scope of Delivery:

• 1x DeWALT DCB1104 system fast charger (10.8-18V)

Product Features:

• Product type: Fast charger
• For battery type: XR slide-on batteries
• For battery technology: Li-Ion
• Charging slots: 1
• LED indicator: Yes
• LCD display: Yes
• Auto shut-off: Yes
• Charging function: Fast charging
• Operating voltage: 100 - 240 V
• Safety features: Temperature monitoring, overcharge protection
